Description

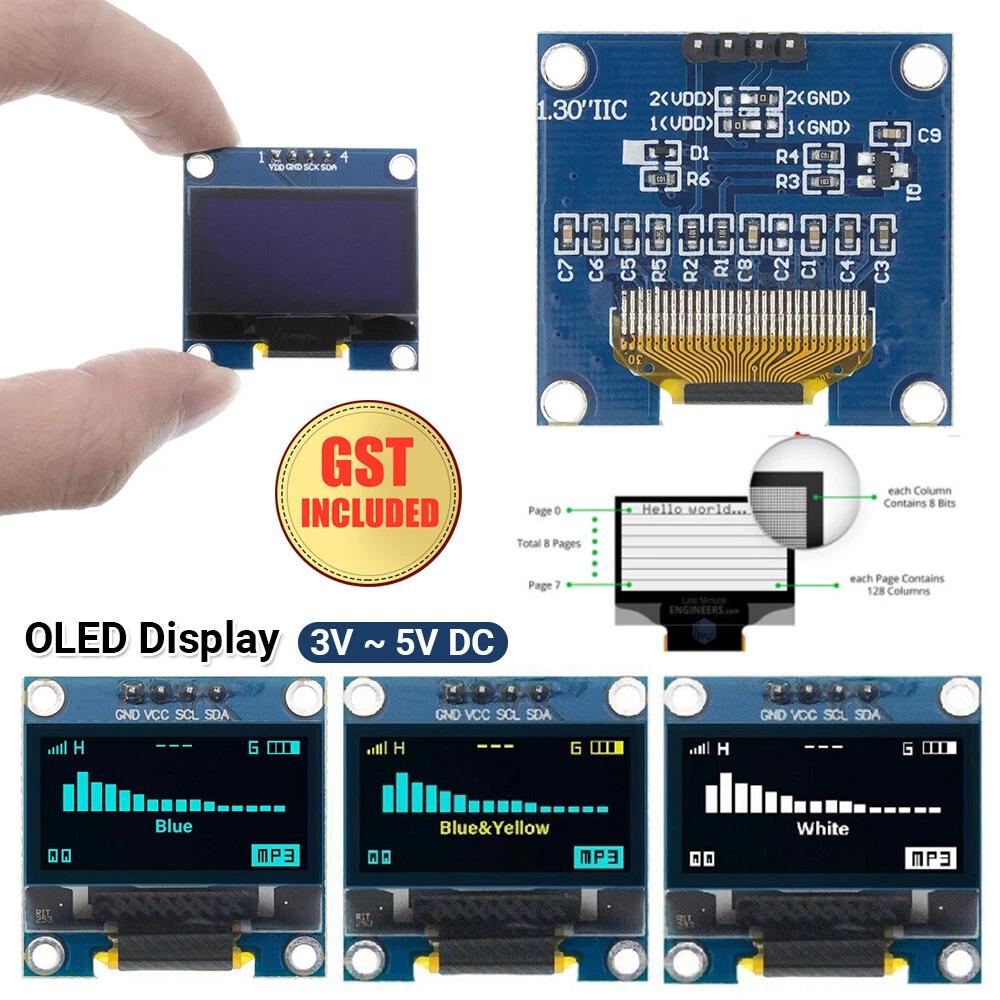

0.96 OLED Display 128×64 I2C SSD1306 for Arduino Uno Mega 2560 BlueYellow/White
Description:
128*64 LED display module for Arduino supports many control chip.
Fully compatible with Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
The interface type is IIC
Pin Definition: GND, VCC, SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ~ 70
Character Colors: Blue(as pictures show)
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Panel Dimensions: 26.96* 24.9* 1.85mm/1.06*0.98*0.07 inch(approx)
Active Area: 21.74* 11.2mm /0.86*0.44 inch(approx)
Driver IC: SSD1306
Package Includes:
1PC*128×64 Blue/White /yellow &Blue LED display module for Arduino
Additional information
Brand | Unbranded |
---|---|
UPC | Does not Apply |
MPN | Does not apply |
ISBN | |
Colour | Blue, White, Yellow & Blue |
